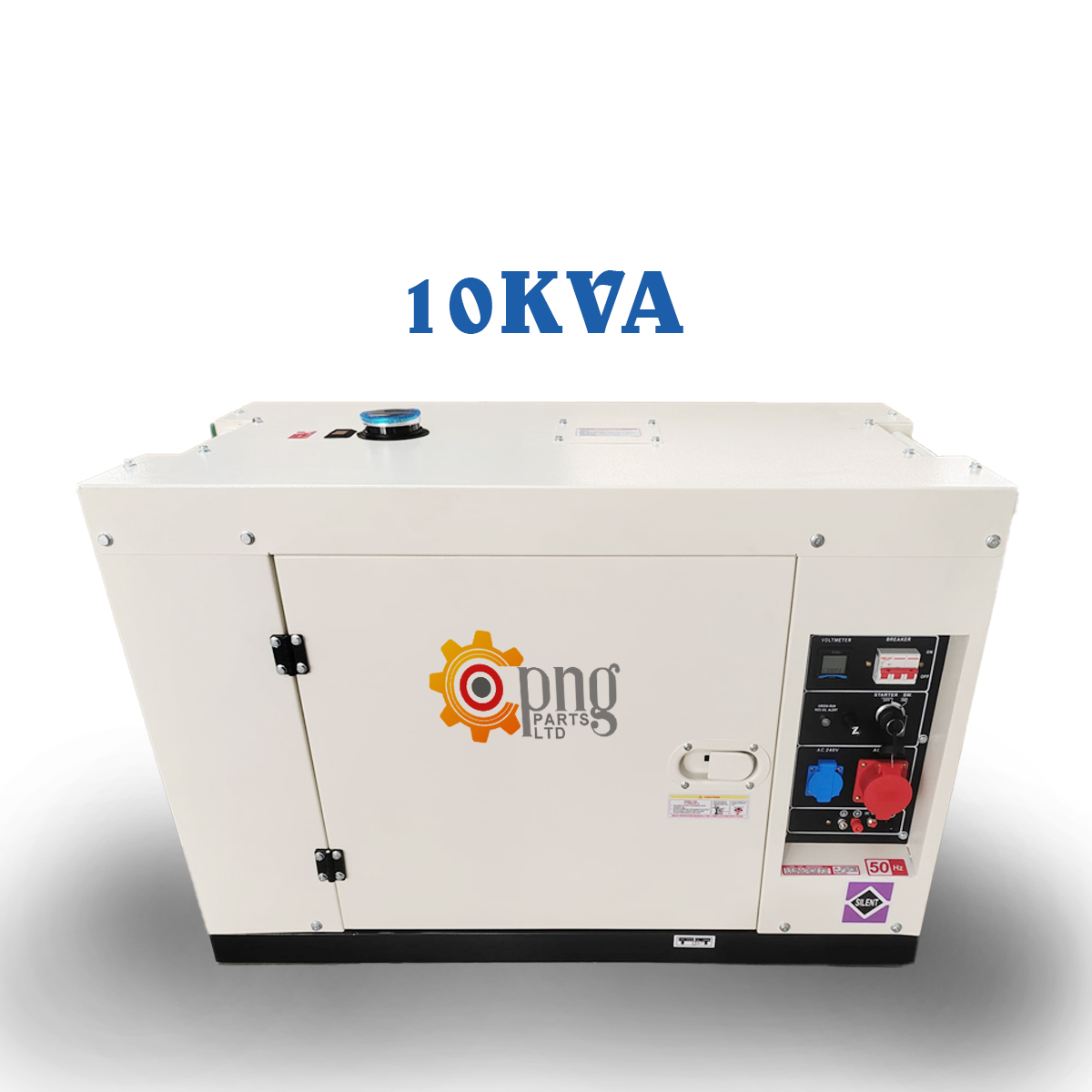

10KVA Diesel Power Silent Generator (PNG PARTS)
Did you like this product? Add to favorites now and follow the product.
Have a Question? Ask a Specialist
(+675) 73630525 Start Live WhatsApp Chat
Description
The KD10000SE is an 8kW diesel generator designed for three-phase applications. It features a 15 HP engine with electric start and AVR regulation for reliable power in a portable unit.
SPECIFICATIONS
| Name | Part Details |
| Model | KD10000SE |
| Rated output (kw/kva) | 8 / 10 |
| Max. output (kw/kva) | 8.5 / 11 |
| Type | Brush with AVR,self exciting,2-pole |
| Phase | 3 |
| Frequency (Hz) | 50 |
| Voltage (V) | 240/415 |
| Power Factor (cos) | 0.8 |
| DC Output (V/A) | 12/8.3 |
| Engine | 1102F( E) |
| Rated. Output(hp) | 15 |
| Engine speed (rpm) | 3000 |
| Type | Single-cylinder,Vertical,4-stroke, AirCooled, Direct, Injection diesel engine |
| Starting system | Electric |
| Bore×Stroke(mm) | 102×85 |
| Displacement (cc) | 718 |
| Fuel consumption(g/kwh) | ≦280 |
| Lube oil capacity (L) | 2 |
| Fuel | 0# or -10# light diesel oil |
| Fuel Tank Capacity(L) | 25 |
| Noise level (dB) | 78 |
| Gross Weight (kg) | 180 |
| Dimention(L×W×H)(m) | 1060×640×830 |
| 20″ FCL (pcs) | 45 |
